Description
Thermal runaway occurs when a battery overheats due to a short circuit, overcharging, or physical damage, causing the battery to explode. Made from high safety materials, this Explosion-proof(ATEX)lithium Battery is designed for use in hazardous environments and is suitable for use in the mining, oil and gas, aerospace and defense industries. It is equipped with an effective explosion-proof shell that can withstand the explosion of flammable gas inside. And it uses a dedicated power management system to monitor the temperature, charging voltage and other data of the power supply in real time to prevent any electronic equipment or circuits from burning and exploding due to overheating. At the same time, by increasing the gap between electrical components, it can reduce the accumulation of heat in the power supply and extend the service life of the equipment.
Features
1. Environmental protection: All raw materials of the Explosion-proof(ATEX)lithium Battery meet environmental protection standards. Even in high temperature environments, they do not contain any toxic and harmful substances and can be used for a long time.
2. Waterproof: Its plastic shell has an IP68 waterproof rating and is waterproof up to 1.5 meters in fresh water for 30 minutes. Therefore it is waterproof and dustproof, protecting the internal cells from short circuits without the need for additional protective covers.
3. Safety: The battery is equipped with an explosion-proof shell to ensure stability in the temperature range of -20~50°C. And its electrolyte is made of flame-retardant material, which means that even if the battery is damaged, it won't ignite.
4. Strict quality: The battery undergoes strict quality inspection after production, including explosion-proof test, voltage test and temperature resistance test. It has obtained multiple certifications such as CE, CD, UN38, KC, etc. to ensure compliance with international safety and quality standards.
Application
-
Oil and gas industry
-
Mining and Petrochemical
-
Transportation and logistics

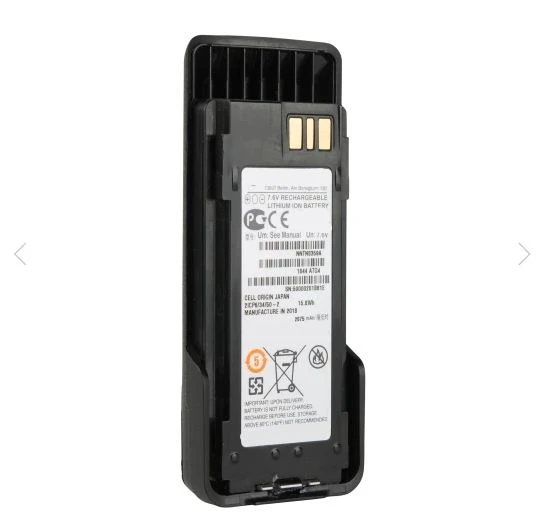

7.2V 3100mAh explosion-proof(ATEX)lithium battery,
lithium battery for special handheld devices
Cell model: 3100mAh/3.6V
Battery specification: 2S1P/3100mAh/7.2V
Nominal voltage: 7.2V
Nominal capacity: 3100mAh
Charging voltage: 8.4V
Charging current: ≤0.62A
Discharge current: 1.55A
Instantaneous discharge current: 3.1A
Discharge cut-off voltage: 6.0V
Internal resistance of finished product: ≤160mΩ
Battery weight: 150g
Product size: 119*62*16(±0.2,mm)
Charging temperature: 0～45℃
Discharge temperature: -10～55℃
Storage temperature: -20～25℃
Waterproof grade: IP68
Battery package: plastic case, plus stickers
Lithium battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, etc.
Application areas: gas station, gas station, mining, etc.
EneSupFar®：Your Trustworthy Other Lithium Ion Battery Supplier
Chaoneng Energy(Yiwu)Co., Ltd. is a green energy enterprise integrating independent research and development, production and sales of lithium-ion battery modules. After years of development, we are at the top of the industry in terms of product performance, technological innovation and all-round services. We have multiple lithium battery pack production lines equipped with advanced production equipment and assembly equipment. Our team has a large number of experienced personnel who can ensure the high quality of the products.
Rich Experience:The company was established in 2022, but started export business in 2005. So far, our technical team has been developing lithium batteries for more than 10 years, while the sales department has been exporting batteries for more than 15 years and lithium batteries for more than 6 years.
Broad Market:Our products have been exported to many countries and have won widespread praise and trust from customers. We also have in-depth cooperation with large lithium battery companies such as CATL, BYD, and Guoxuan High-Tech.
Wide Range Of Products:The company mainly produces lithium-ion batteries, including iron phosphate (LiFePO4/LFP) batteries, ternary lithium-ion battery packs (NMC) and LTO lithium batteries. We can also produce lithium batteries in various configurations on demand to provide customers with personalized choices.
Leading Service:We complete the R&D, production, marketing, sales and technical support processes independently. Whether you want to buy batteries of any shape or material, or battery packs of different structures and sizes, you just need to send your requirements via email and we can customize the product for you, and we also accept OEM customization.
