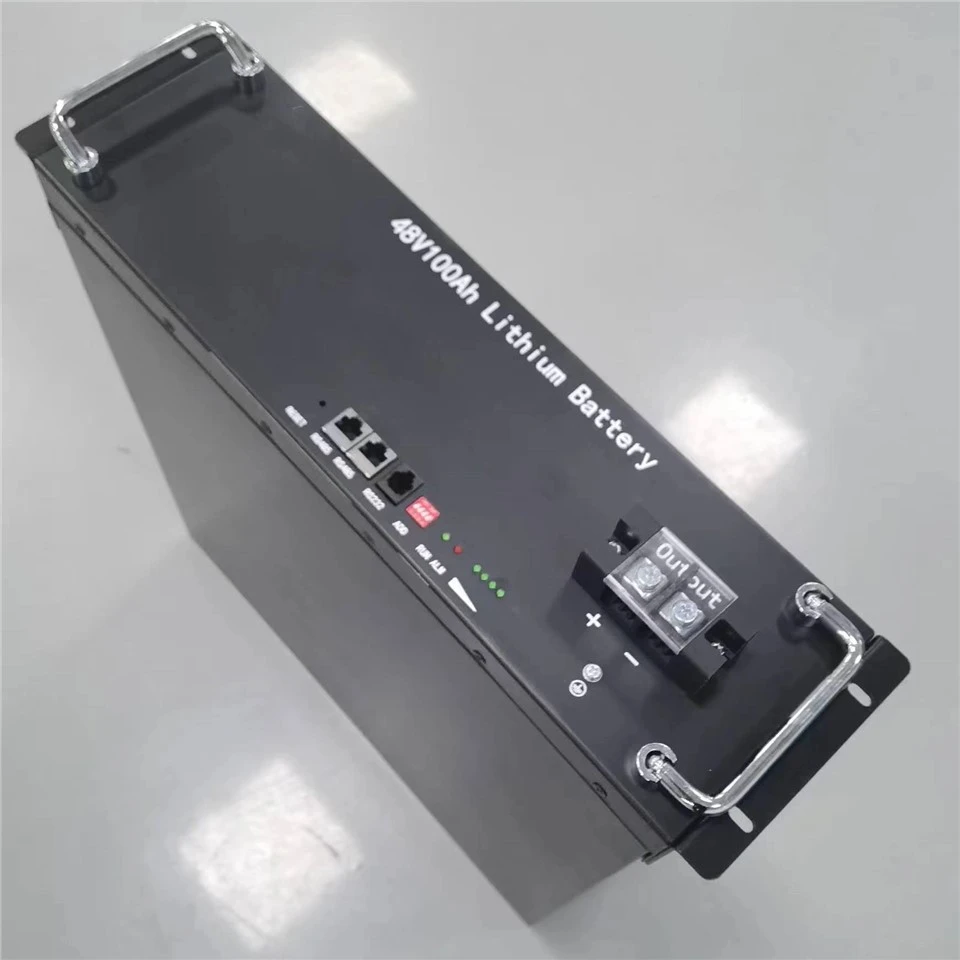

48V100AH LiFePO4 Solar Panel Lithium Battery
video
48V100AH LiFePO4 Solar Panel Lithium Battery

48V100AH LiFePO4 Solar Panel Lithium Battery

Main features: Can provide OEM / ODM services for customers; BMS 100A with RS232 or RS485 Input port: the same end of input and output, 50A Anderson connector, and the output port can be customized as required Packaging process: fixed bracket + epoxy plate + PVC + iron case; Long cycle life,...
Send Inquiry

Product Introduction

Test item



Unit

Specification



Test method



Rated Capacity



Ah

100

0.2C charge and 1C discharge



Min Capacity



Ah

98

0.2C charge and 1C discharge



Nominal voltage



V

48





Opencircuit Voltage



V

>=49.5

Within 1 hr after standard charge



Nternal Resistance





<=60

Rest 1-4h after standard charge, test the AC

internal resistance of the battery



Weight(Approximately)



kg

42

With case

product-1413-1388



product-3100-1230

Description

As the world rapidly transitions towards sustainable and environmentally friendly solutions, the importance of solar energy is more important than ever. The 48V100AH LiFePO4 Solar Panel Lithium Battery is specially designed for solar energy storage systems and is equipped with LiFePO4 lithium batteries, which provide flexible charging and deeper discharge cycles without causing damage. Its battery chemistry outperforms lead-acid and other lithium batteries, can last 3000-5000 deep discharge cycles and retain over 80% of its original capacity when not used for extended periods of time. In addition, the battery has a high charge-discharge rate, which can fully store solar energy during peak sunshine hours and provide deep power supply for small and medium-sized equipment on cloudy days or at night.



Main features

1. Light weight: This 48V100AH LiFePO4 Solar Panel Lithium Battery is equipped with LiFePO4 battery, which is usually about one-third to one-half the weight of lead-acid batteries. This means that within the same volume, you can increase the number of battery packs to maximize their weight-to-power ratio.



2. Weather-resistant: The battery is equipped with a PVC plastic shell, which is not only waterproof and impact-resistant, but also shows stability under extreme weather conditions in the temperature range of -40~100°C.



3. Safety: It comes with a user-friendly BMS power management system, which can detect the voltage and current of the power supply and operating equipment. This will help protect the system from short circuits, high voltages, and low voltages.



4. Easy to install: This power supply adopts safety packaging technology and is integrated into a compact structure through fixed brackets, epoxy boards, PVC and iron cases. This makes it easier to install and adjust after installation, saving additional labor costs.





EneSupFar®:Your Trustworthy Other Lithium Ion Battery Supplier



Chaoneng Energy(Yiwu)Co., Ltd. is a green energy enterprise integrating independent research and development, production and sales of lithium-ion battery modules. After years of development, we are at the top of the industry in terms of product performance, technological innovation and all-round services. We have multiple lithium battery pack production lines equipped with advanced production equipment and assembly equipment. Our team has a large number of experienced personnel who can ensure the high quality of the products.


Rich Experience:The company was established in 2022, but started export business in 2005. So far, our technical team has been developing lithium batteries for more than 10 years, while the sales department has been exporting batteries for more than 15 years and lithium batteries for more than 6 years.



Broad Market:Our products have been exported to many countries and have won widespread praise and trust from customers. We also have in-depth cooperation with large lithium battery companies such as CATL, BYD, and Guoxuan High-Tech.



Wide Range Of Products:The company mainly produces lithium-ion batteries, including iron phosphate (LiFePO4/LFP) batteries, ternary lithium-ion battery packs (NMC) and LTO lithium batteries. We can also produce lithium batteries in various configurations on demand to provide customers with personalized choices.



Leading Service:We complete the R&D, production, marketing, sales and technical support processes independently. Whether you want to buy batteries of any shape or material, or battery packs of different structures and sizes, you just need to send your requirements via email and we can customize the product for you, and we also accept OEM customization.
